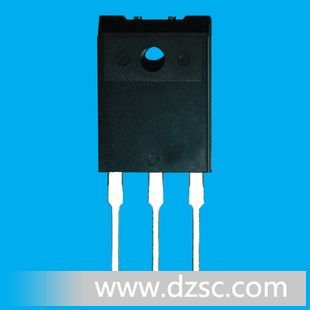

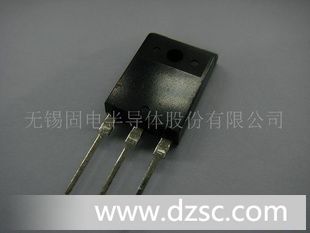

无锡固电ISC供应2SC3527三*管

SY*OL

PARAMETER

VALUE

UNIT

V_CBO

Collector-Base Voltage

500

V

V_CEO

Collector-Emitter Voltage

400

V

V_EBO

Emitter-Base voltage

7

V

I_C

Collector Current-Continuous

15

A

I_CM

Collector Current-Peak

25

A

I_B

Base Current-Continuous

6

A

P_C

Collector Power Dissipation

@ T_C=25℃

100

W

Collector Power Dissipation

@ T_a=25℃

3

T_J

JunctionTemperature

150

℃

T_stg

StorageTemperature Range

-55~150

℃

SY*OL

PARAMETER

CONDITIONS

MIN

TYP.

MAX

UNIT

V_CEO(SUS)

Collector-Emitter Sustaining Voltage

I_C= 0.5A; L= 25mH

400

V

V_CE(sat)

Collector-Emitter Saturation Voltage

I_C= 7A; I_B= 1.4A

1.0

V

V_BE(sat)

Base-Emitter Saturation Voltage

I_C= 7A; I_B= 1.4A

1.5

V

I_CBO

Collector Cutoff Current

V_CB= 500V; I_E= 0

100

μA

I_EBO

Emitter Cutoff Current

V_EB= 7V; I_C= 0

100

μA

h_FE-1

DC Current Gain

I_C= 2A; V_CE= 5V

15

h_FE-2

DC Current Gain

I_C= 7A; V_CE= 5V

10

f_T

Current-Gain—Bandwidth Product

I_C= 1A; V_CE= 10V; f= 1MHz

15

MHz

Switching times

t_on

Turn-On Time

I_C= 7A; I_B1= 1.4A, I_B2= -1.4A;

V_CC= 125V

1.0

μs

t_stg

Storage Time

2.5

μs

t_f

Fall Time

1.0

μs
