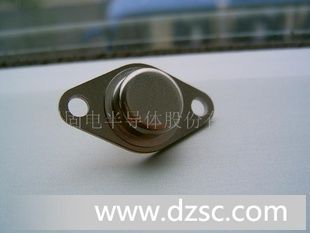

无锡固电iscsemi 2N3445

D*CRIPTION

·Excellent Safe Operating Area

·DC Current Gain-h_FE= 20-60@ I_C= 3A

·Collector-Emitter Saturation Voltage-

: V_CE(sat)= 1.5V(Max)@ I_C= 3A

·Collector-Emitter Sustaining Voltage-

: V_CEO(SUS)= 60V(Min)

APPLICATIONS

·Designed for switching and amplifier applications.

ABSOLUTE MAXIMUM RATINGS(T_a=25℃)

*SYOL**	PARAMETER	VALUE	UNIT
V_CBO	Collector-Base Voltage	80	V
V_CEO	Collector-Emitter Voltage	60	V
V_EBO	Emitter-Base Voltage	6	V
I_C	Collector Current-Continuous	7.5	A
I_B	Base Current-Continuous	4	A
P_C	Collector Power Dissipation@T_C=25℃	115	W
T_J	Junction Temperature	200	℃
T_stg	Storage Temperature	-65~200	℃
