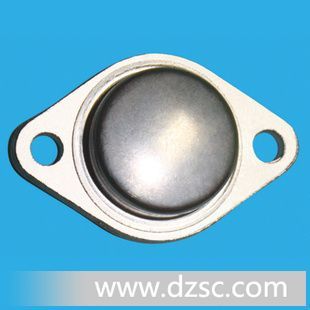

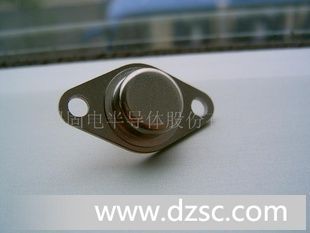

无锡固电ISC 供应2SA1180三*管

SY*OL

PARAMETER

VALUE

UNIT

V_CBO

Collector-Base Voltage

-180

V

V_CEO

Collector-Emitter Voltage

-180

V

V_EBO

Emitter-Base Voltage

-5

V

I_C

Collector Current-Continuous

-10

A

I_B

Base Current-Continuous

-4

A

P_C

Collector Power Dissipation

@T_C=25℃

100

W

T_j

Junction Temperature

150

℃

T_stg

Storage Temperature

-65~150

℃

SY*OL

PARAMETER

CONDITIONS

MIN

TYP.

MAX

UNIT

V_(BR)CEO

Collector-Emitter Breakdown Voltage

I_C= -25mA; I_B= 0

-180

V

V_(BR)CBO

Collector-Base Breakdown Voltage

I_C= -1mA; I_E= 0

-180

V

V_(BR)EBO

Emitter-Base Breakdown Voltage

I_E= -1mA; I_C= 0

-5

V

V_CE(sat)

Collector-Emitter Saturation Voltage

I_C= -5A; I_B= -0.5A

-2.0

V

V_BE(sat)

Base-Emitter Saturation Voltage

I_C= -5A; I_B= -0.5A

-2.5

V

I_CBO

Collector Cutoff Current

V_CB= -180V; I_E= 0

-100

μA

I_EBO

Emitter Cutoff Current

V_EB= -5V; I_C= 0

-100

μA

h_FE

DC Current Gain

I_C= -5A ; V_CE= -4V

30
