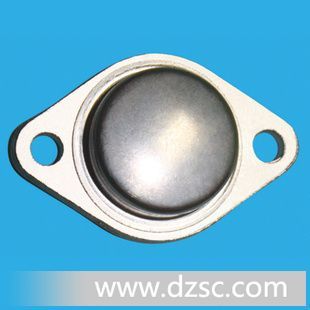

无锡固电——ISC 供应2N6577三*管

SY*OL

PARAMETER

VALUE

UNIT

V_CBO

Collector-Base Voltage

90

V

V_CEO

Collector-Emitter Voltage

90

V

V_EBO

Emitter-Base Voltage

7.0

V

I_C

Collector Current -Continuous

15

A

I_CP

Collector Current-Peak

30

A

I_B

Base Current

0.25

A

P_C

Collector Power Dissipation@T_C=25℃

120

W

T_j

Junction Temperature

200

℃

T_stg

Storage Temperature

-65~200

℃

SY*OL

PARAMETER

CONDITIONS

MIN

MAX

UNIT

V_CEO(SUS)

Collector-Emitter Sustaining Voltage

I_C= 200mA ; I_B= 0

90

V

V_CE(sat)-1

Collector-Emitter Saturation Voltage

I_C= 10A; I_B= 0.1A

2.8

V

V_CE(sat)-2

Collector-Emitter Saturation Voltage

I_C= 15A; I_B= 0.15A

4.0

V

V_BE(sat)-1

Base-Emitter Saturation voltage

I_C= 10A; I_B= 0.1A

3.5

V

V_BE(sat)-2

Base-Emitter Saturation voltage

I_C= 15A; I_B= 0.15A

4.5

V

I_CEO

Collector Cutoff current

V_CE= 90V; I_B= 0

1.0

mA

I_CBO

Collector Cutoff current

V_CB= 90V; I_E= 0

0.5

mA

I_CER

Collector Cutoff current

V_CE= 90V; R_BE= 10K, T_C=150℃

5.0

mA

I_CEX

Collector Cutoff current

V_CE= 90V; V_BE= -1.5V; T_C=175℃

5.0

mA

I_EBO

Emitter Cut-off current

V_EB= 7V; I_C= 0

7.5

mA

h_FE-1

DC Current Gain

I_C= 0.4A; V_CE= 3V

200

h_FE-2

DC Current Gain

I_C= 4A; V_CE= 3V

2000

20000

h_FE-3

DC Current Gain

I_C= 10A; V_CE= 3V

500

h_FE-4

DC Current Gain

I_C= 15A; V_CE= 4V

100

Switching Times

t_d

Delay Time

V_CC= -30V; I_C= 10A; I_B1= -I_B2= -0.1A,

t_p= 300μs; Duty Cycle≤2.0%

0.15

μs

t_r

Rise Time

1.0

μs

t_s

Storage Time

2.0

μs

t_f

Fall Time

7.0

μs
