Technical data: Material:
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 125℃, short time is 140℃.
● Br*, screw is br*彩surface plated br*.
● Voltage: 250 - 450V
● Color: Natural color as standard ● PA, 尼龙 6/6, *火等级:94V-2. 阻燃、 *溶性、*冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜表面镀铜，螺丝铜质表面镀锌
● 适用电压范围: 250 - 450V

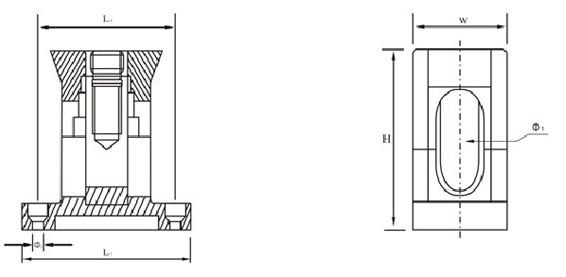

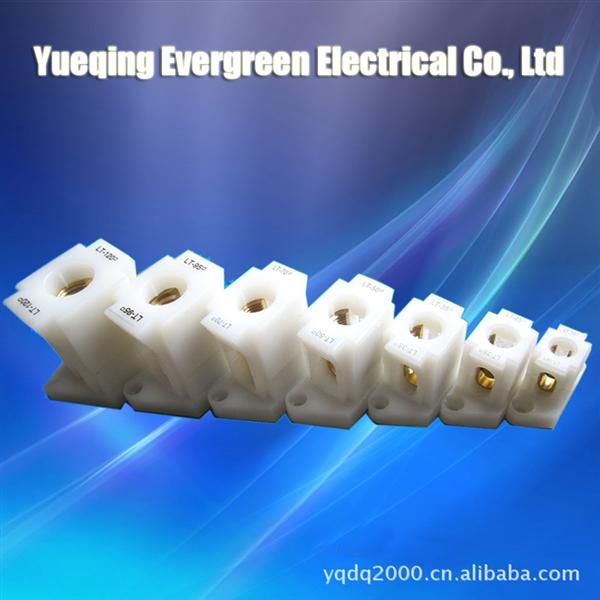

● 颜色: 白色,*颜色欢迎订做 Item no. | Spec. | L1 | L2 | W | H | ø1 | ø2 | screw size | mm | 01 | 16mm² | 41 | 31.5 | 17 | 32 | 14.5 x 4.8 | 4.3 | M8 | 02 | 25mm² | 47.2 | 37.5 | 20.8 | 37.7 | 17 x 6.8 | 4.3 | M10 | 03 | 35mm² | 54.8 | 44.5 | 24.4 | 42.4 | 19 x 8.4 | 4.3 | M12 | 04 | 50mm² | 65 | 54 | 27 | 48.5 | 22 x 9.3 | 5 | M14 | 05 | 70mm² | 66.8 | 56 | 29 | 52.5 | 25 x 10.5 | 5 | M16 | 06 | 95mm² | 71 | 60 | 33.5 | 56.7 | 29 x 12.6 | 5 | M18 | 07 | 120mm² | 73.4 | 62 | 35.8 | 61 | 33 x 13.8 | 5 | M20 |
|
