SAMSUNG/JUKI 1.2米灯条贴装扩展系统

贴片机功能扩展：（可针对三星及JUKI YMH 天龙机器进行1.2米功能扩展）

1. 对600-1200mm以上PCB板贴片分两段一次性贴装完成，无需人工取板后再次贴装。

2. 600-1200mmPCB长度可调整。

3. LED贴片模式与原贴片机模式可自动切换。

4. 贴片速度及贴片元件范围与原贴片机一致。

5. 体积小（380*120*120mm），不占有任何空间，直接集成在原贴片机中。

6. 对原贴片机的机械、软件、线路等不作任何改动，无缝集成。

7. PCB要求分两段，每段坐标器件要一致，有两组相同的mark点。

8. 如生产1.2M灯条，您*须在贴片机前后匹配1.5M SMT传送台（力拓可以提供）

9. 需要匹配LT-SP1200 锡膏印刷机（https://szltcncom.h217.000pc.net/ProductInfo.aspx?id=17&pid=29&cl*Id=29）

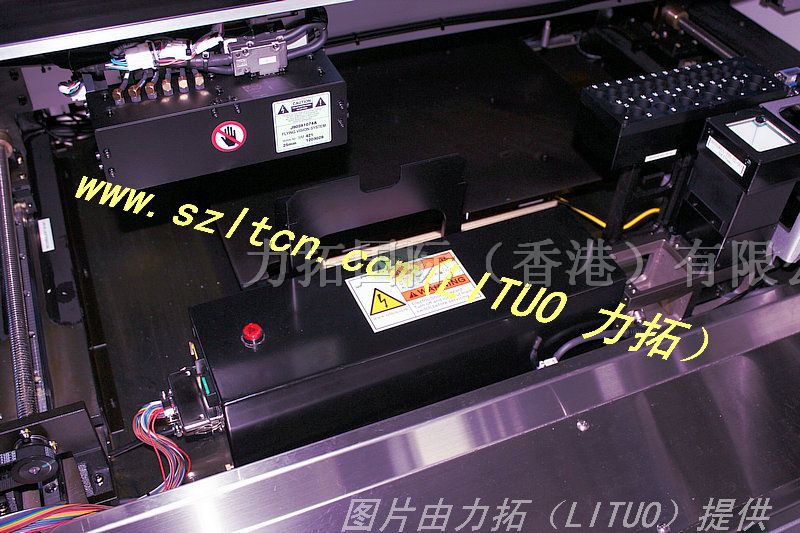

SM-03扩展系统图解：（扩展后可实现1.2M LTCN*技术）

Five: function: SM-03 extension system ( Rio Tinto LITUO )
1 to 600-1200mm above PCB boards two disposable mount finish, without artificial board again after mount.
2 600-1200mmPCB length can be adjusted.
3 LED chip model and the SMT model can automatically switch.
The 4 patch speed and chip components and raw mounter alignment.
5 *all size ( 380 * 120 * 120mm ), does not occupy any space, integrated in the original placement machine.
6 on the first piece of machine, software, circuit without any change, seamless integration.
7 PCB requirements is divided into two sections, each section coordinate device to be consistent, there are two groups of identical mark.
8 such as the production of 1.2M lamps, you must be in the placement machine before and after matching 1.5M SMT transfer station ( Rio Tinto can provide )
9 need to match LT-SP1200 solder paste printing machine ( http: / / szltcncom.h217.000pc.net / ProductInfo.aspx? Id = 17&pid = 29&cl*Id = 29 )
SM-03 extension system diagram: ( expansion can be achieved after the 1.2M LTCN patented technology )
