供应功得CONQUER 2410 2.6mmx6.1mm 贴片保险丝

地区:广东 东莞
认证:

东莞再一电子

普通会员

全部产品 进入商铺

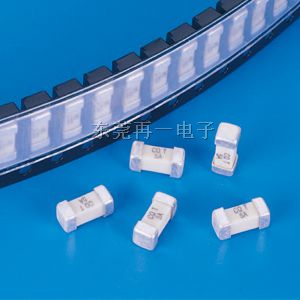

CONQUER  Surface Mount Fuse  表面接著保險絲







產品說明資訊(Product Description Information)

產品特色 *精密中空陶瓷積體的設計
體積小,額定電流 62mA~15A 額定電壓 125Vac/dc
高突波承受能力
對熱衝擊和機械衝擊有很強的承受能力
高*性和穩定的焊錫性,兩端銅帽可以選擇鍍金或鍍銀.
元件*合RoHS要求
-55℃至+125℃工作溫度範圍
本司之SET、SEF等系列產品,使用於此產品之材料中,
使用高溫熔化型之焊錫,此焊錫成份中鉛含量大於85%,
故此產品*合RoHS指令(2002/95/EC)要求之焊錫含鉛量*過85%之排除條款規範。
Features A hollow precise ceramic tube design
Small volume ,current rating from 62mA to 15A. Voltage rating 125Vac/dc.
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability, 2 terminal caps can choice plating gold or silver.
Meet RoHS Requirement
Operating temperature range: -55oC to +125oC
Our SET、SEF series products, because the materials used in these fuses include
high melting temperature t*e solder and this solder contains more than 85%
lead (Pb), so these products can conform to the exempts of the requirements of
RoHS Directive (2002/95/EC)
安裝方式 貼片
Installation SMD
型号/规格

SEF

品牌/商标

功得CONQUER
