LED单元板LED显示屏P10半户外单元板

亚户外P10四扫单红色单元板产品参数：
    项目Item 单位Unit 参数Parameter
    像素点间距Pixel Pitch mm 10.0
    像素构成Pixel Composition 1R
    LED封装LED Package 546椭圆546 Oval Lamp
    单元板分辨率Resolution of Module Dots 32*16=512

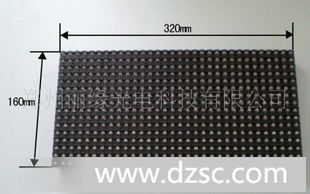

    单元板尺寸Module Size mm 320*160
    像素密度Pixel Density Dots/m2 10000
    亮度Brightness Nits ≥1000
    扫描方式Scan Mode 1/4扫描（恒压）1/4 Scan(Constant Voltage)
    可视角度（水平/垂直）Viewing Angle(H/V) 80°/60°
    单元板*大功率ModuleMaximum Power W 20.5
    使用环境Working Environment Sub-door
    其他特点Other Features 灯驱合一LEDs & ICs in 1 PCB
