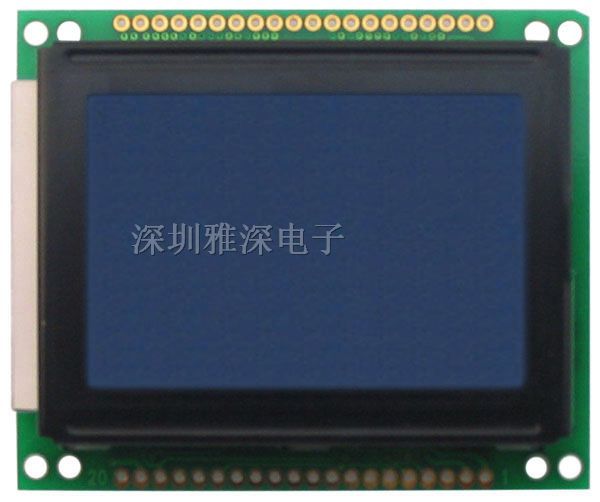

128*64图形LCD

DOT number: 128 x 64
Outline dimension: 60.0 x 50.0 x 11.5 mm
Viewing Area: 43.5 x 29.0 mm
DOT Size: 028 x 0.35 mm
DOT Pitch: 0.32 x 0.39 mm
LCD T*e: STN Y/G
Backlight: LED white

Absolute maximum rating
Supply voltage (logic): -0.3-7v
Supply voltage (LCD): -0.3-19v
Input voltage: -0.3-0.3+vdd
Operating temp: -20c-70c
Storage temp: -30c-80c

Electronical characteristics
Input high voltage: 2-vdd
Input low voltage: -0.3-0.8v
Output high voltage: 2.4-vdd
Output low voltage: 0-0.4v
Supply current: 0-6mA

Besides the common functions of LCDs, our products has its unique features as follows:
1) High reliability life expectancy reaching 100, 000 hrs.
2) Wide range of temperature from -40-80 oC.
3) Low power consumption -maximum power consumption stays 8nA/mm2.
4) Wide viewing angle-viewing angle reaching 120 o.
