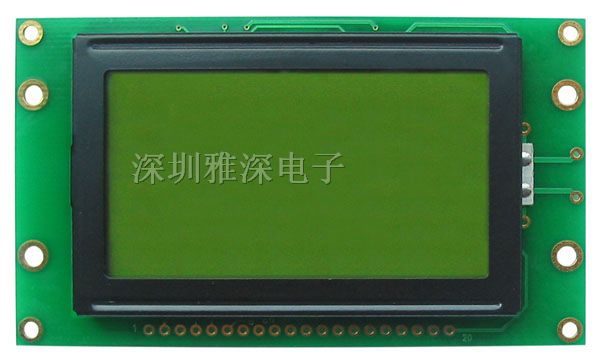

128*64图形LCD

DOT number: 128 x 64
Outline dimension: 92.0 x 53.0 x 9.5 mm
Vewing Area: 60.0 x 32.6 mm
DOT Size: 0.40 x 0.40 mm
DOT Pitch: 0.43 x 0.43 mm
LCD T*e: STN Y/G
Backlight: LED Y/G

Character x line: 16 x 4
Outline dimension: 87.0 x 60.0 x 13.5 mm
Vewing Area: 62.0 x 26.0 mm
Character Size: 2.95 x 4.75 mm
DOT Size: 0.55 x 0.55 mm
LCD Mode: STN LCD
Color of Backlight: LED white;
Abosolute maximum rating
Supply voltage (logic): -0.3-7V
Supply voltage (LCD); -0.3-13.5V
Input voltage: -0.3-0.3+VDD
Operating temp: -20-70C
Storage temp: -30-80C
Electronical characteristics
Input high voltage: 2.0-VDD
Input low voltage: -0.3-0.8V
Output high voltage: 2.4-VDD
Output low voltage: 0.0.4V
Supply current: 0-1.5mA

Besides the common fuctions of LCDs, our products has its unique features as follows:
1) High reliability life expectancy reaching 100, 000 hs.
2) Wide range of temperature from -40-80 oC.
3) Low power cunsumption -maximum power consumption stays 8nA/mm2.
4) Wide viewing angle-viewing angle reaching 120 o.
