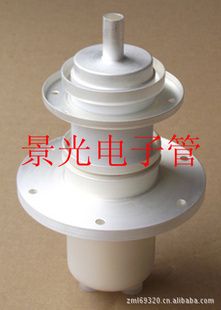

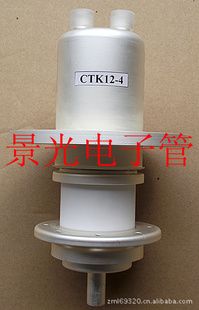

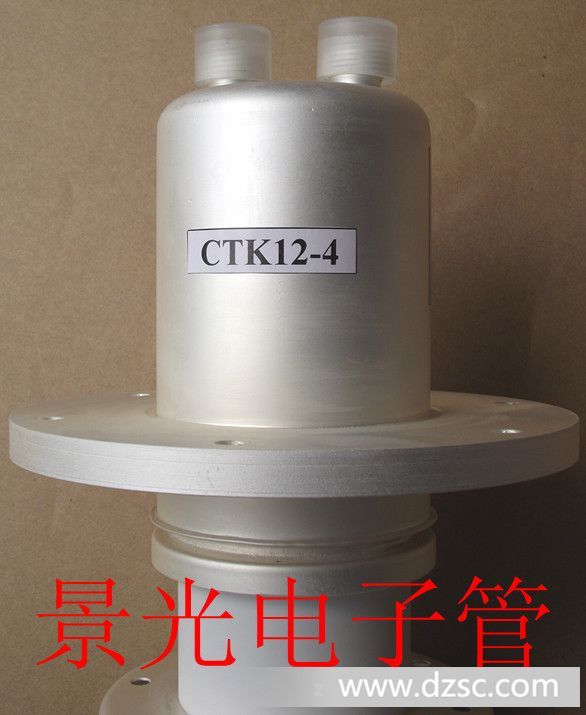

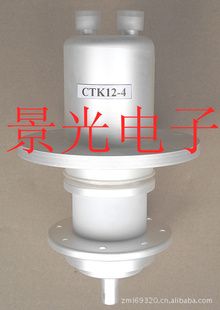

供应罗芬激光机功率源末级功率放大电子管*K12-4

江西景光电子有限公司近年开发生产的适用于德国罗芬激光机作功率源放大用的*K12-4电子管现已大量供应欧美市场。应国内用户要求，现将该产品有关技术参数上网发布。

The *K 12-4 is a high-power, high-μ triode designed specifically for industrial applications.This tube uses a coaxial design and metal-ceramic technology. It may be operated in CW or pulse modes. For operation in pulse mode, the parameters depends on each equipment characteristics,contact us for specific information.This product is designed, developed and manufactured at an ISO 9001 registered production site.

Electrical characteristics

Cathode thoriated tungsten

Filament voltage 灯丝电压 (+5 %, -10 %) (1) 5.8 V

Filament current 灯丝电流   145 A

Surge current 600 A max.

Cold resistance 5 mÙ

Capacitances :

• grid-anode  输出电容21 pF

• grid-cathode输入电容 60 pF

• cathode-anode (2)跨路电容 0.2 pF

Amplification factor 放大系数220 approx.

Transconductance (Va : 10 kV, Ia : 4 A) 跨导65 mA/V approx.

Mechanical characteristics

Operating position vertical, anode up or down

Weight净重3.1 kg approx.

Dimensions see outline drawing

Filament connections connector TH 16143

Maximum ratings

Frequency (3)  工作频率120 MHz

Anode voltage 阳压:

• up to 80 MHz 12 kV

• from 80 to 100 MHz 10 kV

• from 100 to 120 MHz 8 kV

Control grid voltage控制栅栅压  - 1500 V

Peak cathode current, CW 28 A

Anode dissipation阳*耗散功率:

• industrial water 13 kW

• distilled or deionized water 15 kW

Grid dissipation 栅*耗散功率:

• up to 80 MHz 450 W

• from 80 to 100 MHz 420 W

• from 100 to 120 MHz 390 W

Grid resistance (tube non conducting) 10 KÙmax.

Cooling

Anode cooling water阳*水冷却

Cooling water flow and pressure gradient see cooling curves

Temperature at outlet (industrial water) 60 °C max.

Cooling water inlet pressure 5 bar max.

Temperature at any point on tube envelope 220 °C max.

Air flow on filament head 0.5 m3/mn

T*ical operation (4) 典型工作状态

Cl* C RF amplifier or oscillator, CW

Frequency                                     30       60 MHz

Anode voltage                              10         8 kV

Grid bias                                   - 210       - 200 V

Grid voltage                                515         500 V

Anode current (5)                           4         3.8 A

Grid current (5)                             1.4        1.4 A

Anode input power                       40       30.4 kW

Anode output power (oscillator)  30         22 kW

Anode dissipation (5)                    9          8 kW

Grid dissipation (5)                     370        370 W

Grid drive power (6)

(circuit losses not included)        665        645 W

Grid resistance (oscillator)            150       140Ù
