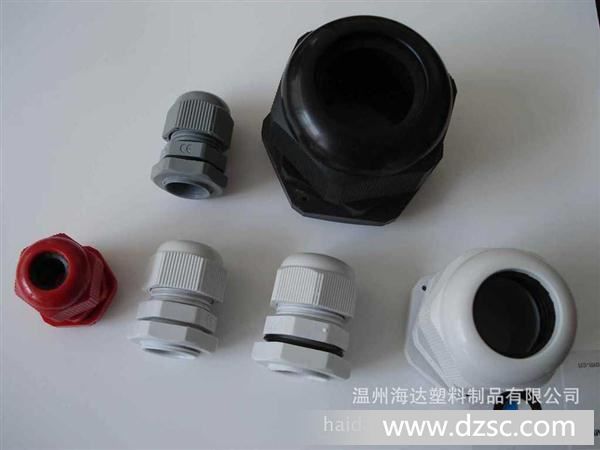

特点:
1. 夹紧圈经*设计,拉力强,对电缆不造成损伤。
2. 不须将固定头解体,电缆可直接穿入上紧即可,省 时方便
用途:一般机械控制箱、配电缆、机器、电器等电缆固定用。
规格*。
德制 | 公制 | D1 | D2 | L1 | L2 | L3 | L4 | B1 | 范围 | PG-07 | M12*1.5 | 12.0 | 8.1 | 9 | 5 | 15 | 14.0 | 6.4 | 3.5-6 | PG-09 | M16*1.5 | 16.0 | 11.0 | 9 | 5 | 15 | 16.0 | 8.6 | 4-8 | PG-11 | M18*1.5 | 17.9 | 13.0 | 9 | 5 | 18 | 18.0 | 10.7 | 5-10 | PG-13.5 | M20*1.5 | 20.2 | 15.0 | 9 | 5 | 20 | 19.0 | 13.3 | 6-12 | PG-16 | M22*1.5 | 22.0 | 17.0 | 11 | 5 | 20 | 19.0 | 14.3 | 10-14 | PG-19 | M24*1.5 | 24.0 | 19.0 | 11 | 5 | 22 | 21.0 | 15.5 | 12-15 | PG-21 | M27*1.5 | 26.9 | 21.8 | 11 | 6 | 24 | 22.0 | 16.7 | 13-18 | PG-25 | | 29.8 | 24.0 | 13 | 7 | 24 | 24.0 | 19.2 | 15.22 | PG-29 | | 36.0 | 28.0 | 13 | 7 | 25 | 24.0 | 24.8 | 18-25 | PG-36 | | 45.7 | 39.0 | 15 | 8 | 32 | 27.0 | 30.7 | 22-32 | PG-42 | | 54.0 | 46.0 | 15 | 8 | 33 | 29.0 | 35.6 | 30-38 | PG-48 | | 59.0 | 51.0 | 16 | 8 | 36 | 30.0 | 41.4 | 34-44 | PG-63 | | 71.0 | 63.5 | 28 | 9 | 45 | 44.0 | 55 | 42-54 |
|
|
![](https://file1.dzsc.com/product/13/01/13/331526_052248633.jpg)
"
