品牌:华宇 型号:HYG85A 种类:蜂鸣器(片) 驱动方式:电磁式 是否有源:无源 材质:ABS 规格尺寸:8.5*8.5*4（mm）
HYG85A |
| | |

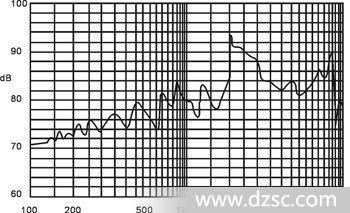

| FREQUENCY R*PONSE
|
|
|
| SPECIFICATIONS |
| T*e | Unit | HYG8501A | HYG8503A | HYG8505A | | Rated Voltage | V | 1.5 | 3.6 | 5 | | Operating Voltage | V | 1-2 | 2-5 | 4-6 | | *Rated Current(MAX) | mA | ≤90 | | *Min Sound Output at 10 cm | dB | 2-2.5KHz≥86 | 2.5-3KHz≥86 | 2.7-3.2KHz≥86 | | Coil Resistance | Ω | 6&plu*n;1 | 16&plu*n;3 | 30&plu*n;5 | | *Resonant Frequency | Hz | 2500 | | Operating Temperature | ℃ | -20～+60 | | Storage Temperature | ℃ | -30～+85 | | Weight | g | 0.6 |
|
