东莞端子机电磁铁厂家订做

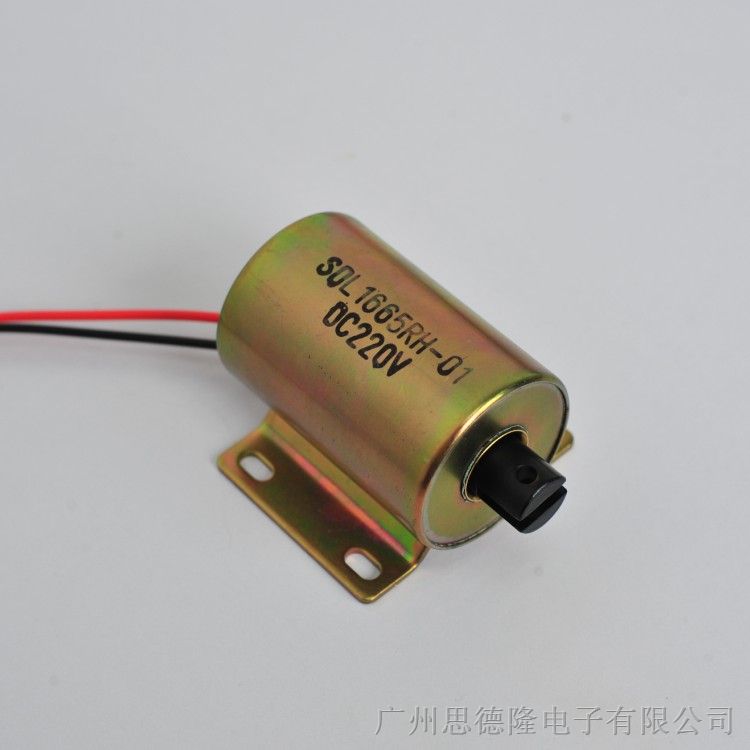

SDL-O1665A-220L   电磁铁  用于线材机械  铜带机

DC220V/2.44A-1.88A

行程：20mm

初始力：2.5KG

详细说明及性能优劣：

1. 电磁铁铁芯耐磨，撞击性好，长年使用顶部无损；

2. 铜头与导杆之间螺纹固定点胶，并且带有无头螺丝固定，频繁撞击铜头不会脱落；

3. 弹簧在原有基础上加大，保证弹回有力，动感强烈；

4. 线包采用优质漆包线制成，耐温，耐高压，电流稳定，磁感应强度稳定；

5. 线圈装有双重保险丝，对于瞬间电压过高，长时间通电发热带来的烧毁电磁铁以及游戏机其他部件问题得到解决；

6.良好的框架结构设计和铆合，有效解决电磁铁散架问题。

7.电磁铁寿命达到500万次以上。动感持久不衰。

广州思德隆电子有限公司品种多样，规格齐全，产品从零部件到成品组装均有自己的加工设备以及生产线，拥有高精密度检测仪器和自主研发的老化设备，（东莞端子机电磁铁厂家订做）从产品设计到样品以及量产，均有量化高效的工艺流程及老化实验检测，保证了产品的质量与订单的按时交货。

SDL-O1665A-220Lsolenoid DC220V/2.44A-1.88A

Stroke:20mm

Initial force: 25N

Detailed description and performance advantages and disadvantages:

Electromagnet core wear, impact, and used for many years at the top of non-destructive;

Between the copper head and the guide rod screw dispensing, and with headless screws, frequently hit the copper head will not fall off;

Spring on the basis of the original increase, bounced back strong, strong dynamic;

4 line package made of high quality enameled wire, temperature, high pressure, stable current, the stable magnetic induction;

Coil fitted with a double fuse, instantaneous voltage is too high, long power the heat burned electromagnet and game consoles to other parts of the problem is resolved;

Good framework for structural design and riveting, an effective solution to the problem of electromagnet fall apart.

7 electromagnet life of more than 500 million times. Dynamic enduring.
