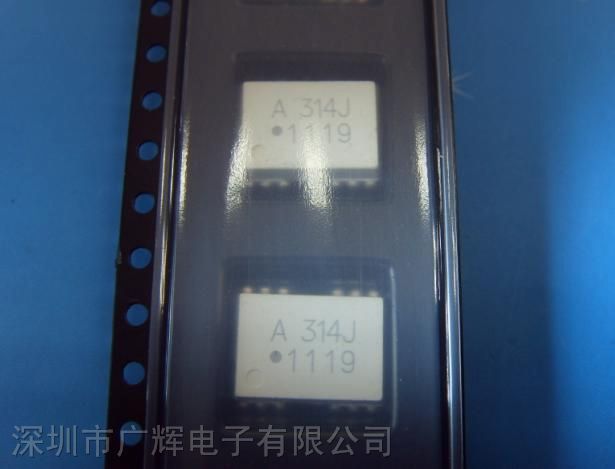

供应HCPL-314J,A314J SOP12光藕
| 描 述 ： |
OPTOCOUPLER 2CH 0.4A 12SOIC |
| 系列 ： |
隔离器 > 逻辑输出
|
| 电压 - 隔离 ： |
3750Vrms |
| 通道数 ： |
2, 单向 |
| 电流 - 输出 / 通道 ： |
- |
| 数据速率 ： |
- |
| 传输延迟高 - 低 @ 如果 ： |
300ns @ 8mA |
| 电流 - DC 正向(If) ： |
25mA |
| 输入类型 ： |
DC |
| 输出类型 ： |
开路集电极 |
| 安装类型 ： |
表面贴装 |
| 封装/外壳 ： |
12-SOIC (0.295", 7.50mm 宽) |
| 封装 ： |
SOP-12 |
| 包装 ： |
剪切带 (CT) |
特性Features：
· 0.4 A Minimum Peak
Output Current
· High Speed Response:
0.7 ms Max. Propagation
Delay over Temp. Range
· Ultra High CMR: Min.
10 kV/ms at VCM
= 1.5 kV
· Bootstrappable Supply
Current: Max. 3 mA
· Wide Operating Temp.
Range: -40°C to 100°C
· Wide VCC Operating Range:
10 V to 30 V over Temp.
Range
· Available in DIP8 (Single)
and SO16 (Dual) Package
· Safety Approvals: UL
Recognized, 3750 Vrms for
1 Minute. CSA Approval
Pending. VDE Approval
Pending VIORM=891 Vpeak
描述Description：
The HCPL-314J family of devices
consists of an AlGaAs LED
optically coupled to an integrated
circuit with a power output stage.
These optocouplers are ideally
suited for driving power IGBTs
and MOSFETs used in motor
control inverter applications. The
high operating voltage range of
the output stage provides the
drive voltages required by gate
controlled devices. The voltage
and current supplied by this
optocoupler makes it ideally
suited for directly driving small
or medium power IGBTs. For
IGBTs with higher ratings the
HCPL-3150(0.5A) or HCPL-3120
(2.0A) optocouplers can be used.
HCPL-314J,A314J
AVAGO
