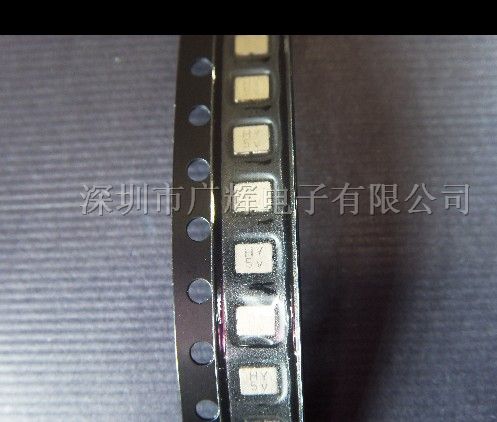

台湾嘉硕TST GPS滤波器TA0285A

图文详情
产品属性
相关推荐

P/N	Center Frequency	Pass band	Insertion Loss	Package(mm)
P/N	(MHz)	(MHz)	(d B Max)	Package(mm)
TA139E1	139	8	6.5	F-11
TA0245A	139	8	6.5	5.0x5.0x1.7
TA147E1	147	8	6.5	F-11
TA155FD	155	8	6.5	5.0x5.0x1.65
TA155E1	155	8	6.5	F-11
TA0289A	159.0125	6.025	2.8	7.0x5.0x2.0
TA0395A	159.1625	5.725	3.8	7.0x5.0x2.0
TA0168A	163	8	6.5	5.0x5.0x1.7
TA163E1	163	8	6.5	F-11
TA0437A	169	6	2.8	5.0x5.0x1.7
TA0377A	169	6	2.8	7.0x5.0x2.0
TA0181A	171	8	6.5	5.0x5.0x1.7
TA171E1	171	8	6.5	F-11
TA0574A	180.175	6	2.8	5.0x5.0x1.7
TA0461A	184	6	2.8	5.0x5.0x1.7
TA0378A	184	6	2.8	7.0x5.0x2.0
TA0575A	188.175	6	2.8	5.0x5.0x1.7
TA0369A	220	4	4.2	5.0x5.0x1.7
TA0576A	221.6	10	3	5.0x5.0x1.7
TA0422A	230.4	1	3.8	5.0x5.0x1.7
TA0560A	268	4	4	5.0x5.0x1.7
TA0510A	280	8	4.5	5.0x5.0x1.7
TA280E1	280	8	4.5	F-11
TA0204A	281	8	4.5	3.8X3.8X1.3
TA284FD	284	8	4.5	5.0x5.0x1.5
TA0205A	284	8	4.5	3.8X3.8X1.3
TA0486A	285	8	4.5	5.0x5.0x1.53
TA0544A	290	7	4.5	F-11
TA0187A	307.5	4	4	5.0x5.0x1.65
TA0499A	311.04	0.4	4	3.8x3.8x1.7
TA0615A	311.06	2	3	3.8x3.8x1.25
TA0365A	312.15	0.95	4	3.8x3.8x1.7
TA0518A	313.85	0.8	4	3.8x3.8x1.7
TA0705A	315	0.6	2.5	3.8x3.8x1.25
TA0672A	315	10	4	3.8x3.8x1.25
TA0657A	315	0.6	2.5	3.0x3.0x1.3
TA0500A	315	0.8	4	3.8x3.8x1.5
TA0234A	315	0.8	4	TO-39
TA0301A	315	0.8	4	3.8x3.8x1.3
TA0209A	315	0.8	4	5.0x5.0x1.7
TA0308A	315.15	0.8	4	5.0x5.0x1.65
TA0283A	315.5	0.8	3.5	TO-39
TA325E1	325	8	4.5	F-11
TA0797A	340	6	3.5	5.0x5.0x1.7
TA0188A	343.5	4	4	5.0x5.0x1.65
TA0376A	390	1.1	4	5.0x5.0x1.7
TA0559A	394	4	4	5.0x5.0x1.7
TA0529A	403.5	3	3.5	3.8x3.8x1.4
TA0489A	403.5	3	3	3.8x3.8x1.4
TA0309A	403.55	1.15	4	5.0x5.0x1.65
TA0340A	403.966	1	3	3.8x3.8x1.7
TA0417A	408.5	16	2.8	5.0x5.0x1.7
TA0396A	413.9	1	3.8	F-11
TA0701A	414	8	4.5	F-11
TA0526A	415.4	5	3.6	5.0x5.0x1.7
TA0525A	415.4	5	3.6	3.8x3.8x1.4
TA0592A	416.405	5	3.6	3.8x3.8x1.4
TA0409A	420	20	3.5	7.0x5.0x1.7
TA0311A	420	18	2.8	5.0x5.0x1.7
TA0418A	424	18	2.8	5.0x5.0x1.7
TA0706A	426	2	4	3.8x3.8x1.25
TA0192A	426.1	0.138	3.5	5.0x5.0x1.7
TA0527A	427.8	5	3.6	5.0x5.0x1.7
TA0593A	428.835	5	3.6	3.8x3.8x1.4
TA0707A	429.25	2	4	3.8x3.8x1.25
TA0655A	430	4	3.6	3.8x3.8x1.25
TA0692A	433	20	2.8	3.8x3.8x1.25
TA0286A	433	8	4.5	5.0x5.0x1.65
TA433K1	433	8	4.5	F-11
TA0723A	433.42	0.5	5	3.8x3.8x1.4
TA0293A	433.42	0.5	4	5.0x5.0x1.7
TA0708A	433.5	3.2	4	3.8x3.8x1.25
TA0255A	433.92	4	3.5	F-11
TA0649A	433.92	1.74	2.7	3.0x3.0x1.3
TA0264A	433.92	0.6	4	5.0x5.0x1.7
TA0537A	433.92	1.74	3.7	3.8x3.8x1.5
TA0300A	433.92	1	3	3.8x3.8x1.3
TA0322A	433.92	0.95	4	3.0x3.0x1.3
TA0307A	433.92	0.7	4	5.0x5.0x1.65
TA0412A	433.92	0.95	4	5.0x5.0x1.7
TA0278A	433.92	4	3.5	5.0x5.0x1.65
TA0277A	433.92	0.6	4	3.8x3.8x1.3
TA0306A	434.26	1	3	3.8x3.8x1.4
TA0693A	435	10	3.3	5.0x5.0x1.7
TA0411A	440	19	2.8	5x5x1.7
TA0419A	441	19	2.8	5.0x5.0x1.7
TA0594A	441.265	5	3.6	3.8x3.8x1.4
TA446E1	446	8	4.5	F-11
TA0381A	446	8	4.5	3.8x3.8x1.4
TA0709A	448	3	4	3.0x3.0x1.3
TA0710A	448	3	4	3.8x3.8x1.25
TA450E1	450	8	4.5	F-11
TA454E1	454	8	4.5	F-11
TA0472A	455	0.5	4	3.8x3.8x1.7
TA0473A	456	0.5	4	3.8x3.8x1.7
TA0474A	460	0.5	4	3.8x3.8x1.7
TA0731A	460	20	3	5.0x5.0x1.7
TA0312A	460	20	3	5.0x5.0x1.65
TA0420A	460	20	2.8	5.0x5.0x1.7
TA0475A	462.5375	0.5	4	3.8x3.8x1.7
TA0313A	465	20	2.9	5.0x5.0x1.7
TA465FD	465	4	4	5.0x5.0x1.7
TA0266A	465.1375	5.175	4	5.0x5.0x1.7
TA466E1	466	8	4.5	F-11
TA0476A	467.5375	0.5	4	3.8x3.8x1.7
TA470FD	470	4	4	5.0x5.0x1.65
TA0568A	475	12	3.3	5.0x5.0x1.7
TE0103A	479.5	27/18	16	4.0x2.5x0.8
TE0107A	479.5	26/18	22.5	5.0x5.0x1.65
TA0421A	480	20	2.8	5.0x5.0x1.7
TA0555A	480	8	3.1	5.0x5.0x1.7
TA0524A	499.25	1	5	5.0x5.0x1.7
TA0506A	500	6	4.7	3.0x3.0x1.3
TA0753A	611	7	4.5	7.0x5.0x1.7
TA0341A	611	7	5	7.0x5.0x2.0
TA0326A	611	7	4.5	9.1x7.1x1.8
TA0616A	675	25	2.2	3.0x3.0x1.4
TA0767A	675	25	3.3	3.0x3.0x1.4
TA0617A	700	25	2.2	3.0x3.0x1.4
TA0342A	713	6	4.5	5.0x5.0x1.7
TA0343A	743	6	4.5	5.0x5.0x1.7
TA0716A	770	20	3	3.0x3.0x1.4
TA0557A	776.5	5.5	4.2	3.0x3.0x1.3
TA0736A	800	20	4	3.8x3.8x1.25
TA0415A	800	20	3.8	3.0x3.0x1.3
TA0740A	800	20	3.8	3.0x3.0x1.3
TA0450A	802	8	4.2	3.8x3.8x1.4
TA0451A	808	4	4.2	3.8x3.8x1.4
TA0478A	810	10	4.3	3.0x3.0x1.3
TA0438A	810	17	3.8	3.0x3.0x1.4
TA0424A	810	5	5	3.0x3.0x1.3
TA0660A	814	32	4.2	3.0x3.0x1.4
TA0430A	815.5	19	3.5	3.0x3.0x1.4
TA0330A	821	10	3.5	3.0x3.0x1.2
TA0558A	821.5	5.5	4.2	3.0x3.0x1.3
TA0511A	830.05	9	4.5	3.8x3.8x1.4
TA0609A	836.5	30	4	3.0x3.0x1.4
TA0169A	836.5	25	3	3.0x3.0x1.2
TA836GG	836.5	25	3.5	3.0x3.0x1.2
TA0183A	836.5	25	2.8	2.5x2.0x0.9
TA0328A	860.5	19	3	3.0x3.0x1.1
TA0452A	861	8	4.2	3.8x3.8x1.4
TA0694A	862.5	0.5	4.5	5.0x5.0x1.7
TA0735A	864	2	4.2	3.8x3.8x1.4
TA0287A	864	2	4.2	3.8x3.8x1.5
TA0416A	864	4	5.5	3.0x3.0x1.4
TA0331A	866	12	3.5	3.0x3.0x1.2
TA0462A	866	8	4.5	3.0x3.0x1.4
TA0547A	867.5	15	3.5	3.0x3.0x1.3
TA0680A	867.5	15	3.5	2.5x2.0x1.0
TA0659A	868.3	1.5	4.2	3.0x3.0x1.3
TA0280A	868.3	1.5	4.2	5.0x5.0x1.7
TA0257A	868.3	1	4.7	3.8x3.8x1.7
TA0336A	868.6	1.38	4.7	5.0x5.0x1.65
TA0538A	868.6	1.2	4	3.8x3.8x1.5
TA0274A	868.95	1.5	4.7	5.0x5.0x1.65
TA0296A	869	2	4	3.0x3.0x1.3
TA0275A	869.6	1.5	4.7	5.0x5.0x1.65
TA0317A	869.85	1.85	4.7	5.0x5.0x1.65
TA0512A	874.55	9.2	3.5	3.8x3.8x1.4
TA0626A	881.5	30	4	3.0x3.0x1.3
TA0321A	881.5	25	3	2.5x2.0x0.75
TA0184A	881.5	25	2.8	2.5X2.0X0.9
TA881GG	881.5	25	3.5	3.0x3.0x1.3
TA0233A	881.5	25	3	3.0x3.0x1.2
TA0627A	895.5	39	2.7	3.0x3.0x1.4
TA0494A	897.5	35	3	3.0x3.0x1.4
TA0372A	902.5	25	4.2	3.0x3.0x1.3
TA0747A	902.5	25	3.5	3.0x3.0x1.4
TA0143A	902.5	25	3.5	3.0x3.0x1.3
TA0562A	906	36	3.2	3.0x3.0x1.4
TA0563A	906	36	4.1	3.0x3.0x1.4
TA0329A	907.5	35	4	2.5x2.0x0.75
TA0530A	912.1	10.2	4.1	3.8x3.8x1.25
TA0282A	914.5	8	4	3.8X3.8X1.3
TA0380A	914.5	8	4	3.8x3.8x1.2
TA0495A	915	26	3.5	3.0x3.0x1.4
TA0281A	915	26	3.5	3.0x3.0x1.2
TA915FC	915	26	3.5	3.8X3.8X1.3
TA0299A	915	26	3	2.5x2.0x0.9
TA0521A	915	6	4.3	3.8x3.8x1.4
TA915EC	915	26	3.2	3.8X3.8X1.3
TA0792A	915.3	21.8	3.5	3.8x3.8x1.6
TA0673A	916.45	1.5	5	3.0x3.0x1.3
TA0344A	916.45	4	3.5	3.0x3.0x1.3
TA0666A	920	40	4.8	3.0x3.0x1.4
TA0775A	922.5	5	4.2	3.0x3.0x1.3
TA0644A	923.5	9	3.5	3.0x3.0x1.4
TA0754A	925	6	4.2	3.0x3.0x1.3
TA0463A	925	6	4.2	3.8x3.8x1.4
TA0254A	930	20	3	3.0x3.0x1.3
TA930H1	930.5	4	4.5	F-11
TA0610A	930.5	8	4.5	3.8x3.8x1.6
TA930GC	930.5	4	4.5	3.8x3.8x1.5
TA935EC	935	3	4	3.8x3.8x1.3
TA0546A	940.5	39	4.5	3.0x3.0x1.4
TA0434A	940.5	39	4.3	2.5x2.0x1.0
TA0390A	940.5	39	4.3	3.0x3.0x1.0
TA0460A	940.5	39	4.4	3.0x3.0x1.3
TA0327A	941.5	35	4	3.0x3.0x1.1
TA0152A	942.5	35	4	3.0x3.0x1.3
TA0179A	942.5	35	4	2.5X2.0X0.9
TA942GG	942.5	35	3	3.0x3.0x1.3
TA0218A	942.5	35	4	2.5X2.0X0.9
TA0394A	942.5	35	4	3.0x3.0x1.3
TA0230A	942.5	35	3.8	3.0x3.0x1.2
TA0231A	942.5	35	4	2.5X2.0X0.75
TA942FG	942.5	35	3.5	3.0x3.0x1.3
TA0373A	947.5	25	4.3	3.0x3.0x1.3
TA0748A	947.5	25	3.5	3.0x3.0x1.4
TA947FG	947.5	25	3	3.0x3.0x1.2
TA947GG	947.5	25	3.5	3.0x3.0x1.2
TA0361A	947.5	25	3	3.0x3.0x1.4
TA0564A	960	36	4	3.0x3.0x1.4
TA0244A	976	32	3.5	3.0x3.0x1.2
TA0689A	978	5	3.5	3.0x3.0x1.4
TA0674A	996	8	4	3.0x3.0x1.3
TA0444A	999	40	4.8	3.0x3.0x1.3
TA0477A	1013	1	4.5	3.0x3.0x1.4
TA0690A	1030	30	3	3.8x3.8x1.5
TA0177A	1030	30	3	3.8x3.8x1.5
TA0696A	1076.06	40	5	3.0x3.0x1.4
TA0227A	1086	10	5	3.0x3.0x1.0
TA0404A	1086	10	4.5	3.0x3.0x1.0
TA0691A	1090	12	5.3	3.8x3.8x1.1
TA0232A	1090	12	5.3	3.8x3.8x1.1
TA1090EC	1090	30	3	3.8x3.8x1.5
TA0267A	1120	40	4.5	3.0x3.0x1.2
TA0620A	1150	32	3	3.0x3.0x1.4
TA0314A	1150	16	5	3.0x3.0x1.1
TA0675A	1176.45	20	4.1	3.0x3.0x1.3
TA0730A	1178.12	40	5	3.0x3.0x1.4
TA0790A	1180	20	5	3.0x3.0x1.4
TA0791A	1180	40	5	3.0x3.0x1.4
TA0364A	1216	8	5.5	3.0x3.0x1.4
TA0288A	1216.88	8	4.9	3.0x3.0x1.2
TA0355A	1216.88	8	5	3.0x3.0x1.4
TA0786A	1220	10	5.3	3.0x3.0x1.4
TA0194A	1220	8	4.8	3.8x3.8x1.2
TA0292A	1220	28	5.7	3.0x3.0x1.2
TA0304A	1220	8	6	3.0x3.0x1.2
TA0269A	1220	8	4.8	3.0X3.0X1.2
TA1227LL	1227	20	1.3	3.0x3.0x1.4
TA1227BB	1227	20	2.2	3.0x3.0x1.4
TA0490A	1228	20	3.9	3.0x3.0x1.3
TA0509A	1228	20	4.4	3.0x3.0x1.4
TA0260A	1240	20	5.8	3.0x3.0x1.2
TA0726A	1280.18	40	5	3.0x3.0x1.4
TA0536A	1300	8	4.5	3.0x3.0x1.3
TA0566A	1330	8	4.6	3.0x3.0x1.3
TA0375A	1330	8	4.5	3.0x3.0x1.4
TA0332A	1350	15	4.5	3.0x3.0x1.2
TA0697A	1382.24	40	5	3.0x3.0x1.4
TA0718A	1397.5	5	3.6	3.0x3.0x1.4
TA0719A	1461.5	5	4	3.0x3.0x1.4
TA0567A	1472	40	5	3.0x3.0x1.4
TA0698A	1484.3	40	5	3.0x3.0x1.4
TA0720A	1486.5	5	4	3.0x3.0x1.4
TA0522A	1500	20	4.2	3.0x3.0x1.3
TA0425A	1542.5	35	4	2.5x2.0x0.75
TA1575LL	1575	20	1.3	3.0x3.0x1.4
TA1575BB	1575	20	2.8	3.0x3.0x1.4
TA0769A	1575.42	2	1.6	2.0x1.6x0.9
TA0664A	1575.42	2	3.5	2.0x1.6x0.7
TA0531A	1575.42	10	3	2.5x2.0x1.0
TA0502A	1575.42	2	3.5	2.0x1.6x0.8
TA0573A	1575.42	2	1.7	2.0x1.6x0.8
TA0587A	1575.42	2	1.6	2.0x1.6x0.7
TA0757A	1575.42	2	1.3	1.4x1.1x0.7
TA0315A	1575.42	2	3.5	3.0x3.0x1.0
TA0406A	1575.42	2.4	2.2	2.0x1.6x0.9
TA0449A	1575.42	2.4	2.8	3.0x3.0x1.0
TA0440A	1575.42	2	4	3.0x3.0x1.4
TA0316A	1575.42	2	3.5	3.0x3.0x1.2
TA0295A	1575.42	2	3.5	2.5x2.0x1.0
TA0688A	1575.42	2	2	2.0x1.4x0.82
TA1575GG	1575.42	2	3.5	3.0x3.0x1.4
TA1575IG	1575.42	2.4	2	3.0x3.0x1.2
TA0654A	1575.42	2	1.9	2.5x2.0x1.0
TA0224A	1575.42	2	3.5	3.0x3.0x1.4
TA0285A	1575.42	2.4	2.2	2.5X2.0X0.9
TA0643A	1575.42	2	2	2.0x1.6x0.7
TA0699A	1586.36	40	5	3.0x3.0x1.4
TA0638A	1590	59	4	3.0x3.0x1.4
TA0676A	1592.5	43	3.5	3.0x3.0x1.4
TA0528A	1615	20	4.6	3.0x3.0x1.3
TA0788A	1642.5	35	3.5	2.5x2.0x1.0
TA0426A	1642.5	35	3.5	2.5x2.0x1.0
TA0727A	1688.42	40	5	3.0x3.0x1.4
TA0682A	1720	24	3	3.0x3.0x1.4
TA0755A	1732.5	45	3.5	3.0x3.0x1.4
TA0656A	1747.5	75	4.4	2.5x2.0x1.0
TA0762A	1747.5	75	4	3.0x3.0x1.4
TA0391A	1747.5	75	4	3.0x3.0x1.4
TA0702A	1765	30	3	3.0x3.0x1.4
TA0667A	1785	60	4	3.0x3.0x1.4
TA0728A	1790.48	40	5	3.0x3.0x1.4
TA0798A	1795	15	3.5	3.0x3.0x1.4
TA0206A	1842	75	4	2.5X2.0X0.9
TA0763A	1842.5	75	3.8	3.0x3.0x1.4
TA0363F	1842.5	75	3.8	3.0x3.0x1.4
TA0219A	1842.5	75	4	2.5X2.0X0.9
TA1842FG	1842.5	75	3.8	3.0x3.0x1.2
TA0318A	1842.5	75	4	2.5x2.0x0.75
TA0363A	1842.5	75	3.8	3.0x3.0x1.4
TA0703A	1855	30	3	3.0x3.0x1.4
TA0604A	1870	60	4	3.0x 3.0x1.4
TA0613A	1880	65	4	3.0x3.0x1.4
TA0294A	1880	60	4	3.0x3.0x1.4
TA0629A	1885	70	3.8	3.0x3.0x1.4
TA0652A	1932.5	15	4	3.0x3.0x1.4
TA0742A	1932.5	15	3	3.0x3.0x1.4
TA0401A	1950	60	3.4	2.5x2.0x1.0
TA0235A	1950	60	4	3.0x3.0x1.4
TA0382A	1950	60	4	2.5x2.0x1.0
TA0614A	1960	65	4	3.0x3.0x1.4
TA0207A	1960	60	3.3	2.5X2.0X0.9
TA0175H	1960	60	4	3.0x3.0x1.4
TA0319A	1960	60	4	2.5x2.0x0.75
TA0246A	1960	60	4	2.5X2.0X1.0
TA0175A	1960	60	4	3.0x3.0x1.4
TA0630A	1965	70	3.8	3.0x3.0x1.4
TA0605A	1970	60	4	3.0x3.0x1.4
TA0711A	1972.5	15	4	3.0x3.0x1.4
TA0724A	2017	19	4	3.0x3.0x1.4
TA0768A	2045	15	3	3.0x3.0x1.4
TA0741A	2067.5	84	4	3.0x3.0x1.4
TA0653A	2120	20	4	3.0x3.0x1.4
TA0228A	2122.5	35	4	3.0x3.0x1.3
TA0743A	2122.5	15	3	3.0x3.0x1.4
TA0756A	2132.5	45	3.7	3.0x3.0x1.4
TA0174G	2140	60	3.5	3.0x3.0x1.4
TA0384A	2140	60	4.1	2.5x2.0x0.75
TA0402A	2140	60	3.5	2.5x2.0x1.0
TA0174A	2140	60	3.5	3.0x3.0x1.2
TA0229A	2158	35	4	3.0x3.0x1.2
TA0733A	2160	20	3.5	3.0x3.0x1.4
TA0465A	2160	60	3.5	3.0x3.0x1.4
TA0712A	2162.5	15	4	3.0x3.0x1.4
TA0700A	2250	100	4.5	3.0x3.0x1.4
TA0803A	2313.5	27	3	3.0x3.0x1.4
TA0273A	2332.5	25	4	3.0x3.0x1.4
TA0515A	2345	27	4	3.0x3.0x1.4
TA0223A	2441.8	83.5	5	3.0x3.0x1.2
TA0532A	2441.8	83.5	5	3.0x3.0x1.4
TA0222A	2442	55	6	3.0x3.0x1.4
TA0795A	2535	70	3.6	3.0x3.0x1.4
TA0759A	2580	30	3.5	3.0x3.0x1.4
TA0744A	2592.5	27	4	3.0x3.0x1.4
TA0760A	2610	30	3.5	3.0x3.0x1.4
TA0545A	2650	70	3.5	3.0x3.0x1.4
TA0761A	2675	30	3.5	3.0x3.0x1.4

型号/规格

TA0285A,TA0295A,TA0528A

品牌/商标

台湾嘉硕TST

环保类别

无铅环保型

主要用途

供应台湾嘉硕TST GPS滤波器TA0285A
