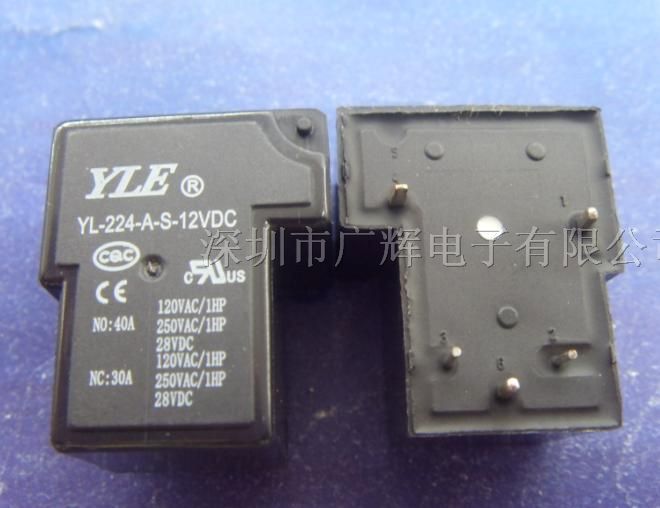

供应YL-224-A-S-12VDC大功率继电器
地区：广东 深圳
认证：
无
图文详情
产品属性
相关推荐
| 型号: | YL224 | ||
| 产品特性: | |||
| 认证号: | |||
| 尺寸(mm): | 32.5*27.5*20.5 | ||
| 线圈电压(VDC): | 3,5,6,9,12,15,18,24,48,110 | ||
| 线圈功耗: | 0.6W,0.9W | ||
| 触点材料: | Sliver Alloy | ||
| 触点形式: | 1A | 1B,1C | |
| 触点切换电流: | 40A | 30A | |
| 触点负载: |
40A/250VAC |
30A/250VAC 30A/30VDC | |
| 2HP 250VAC, 1.5HP 250VAC,TV5 | |||
| 环境温度: | -50~100℃,-55~125℃ | ||
| 介质耐压: | 触电间 | 50HZ 1500V | |
| 触点与线圈间 | 50HZ 5000V (without pin 6) 1500V(with pin 6) | ||
| 绝缘电阻: | 1000Ω | ||
| 接触电阻: | ≤50mΩ | ||
| 电寿命: | 1*105> | ||
| 机械寿命: | 1*107> | ||
| 重量: | 22g(Open Type)28g | ||
| 型号对照: | TYCO SIEMENS T90 OMRON G8P | ||
YL-224-A-S-12VDC,YL-224-A-12VDC,YL224-A-S-12VDC
