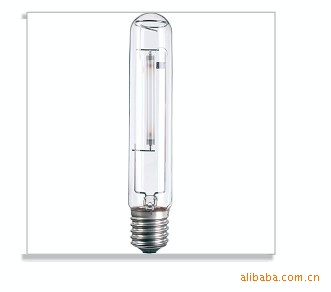

供应飞利浦高压钠灯灯管 SON-T 1000W E40 大功率泛光灯专用

SON-T 1000W/220 E40 1SL



一般特性



系统描述外部                                                 触发器

灯头座                                          E40

玻壳                                            T65 [T 65mm]

玻壳端口                                         透明

运行位置                                         任意[任意或万能(U)]

5％失效时寿命                                   8000 hr

10％失效时寿命                                  10000 hr

20％失效时寿命                                  13000 hr

50％失效时寿命                                  20000 hr

LSF场致发光片,额定12000小时，12小时循环       85 %

LSF场致发光片,额定16000小时，12小时循环       69 %

LSF场致发光片,额定20000小时，12小时循环       50 %

LSF场致发光片,额定2000小时，12小时循环         99 %

LSF场致发光片,额定4000小时，12小时循环        99 %

LSF场致发光片,额定6000小时，12小时循环         97 %

LSF场致发光片,额定8000小时，12小时循环        95 %





电气特性



额定光源功率                                    1000 W

灯电压                                          100 V

灯电流(配电感镇流器时)                                   10.6 A

触发时间                                        10 s

运行时间90%                                                6 min

可调光                                          Yes

光源功率，EM 25°C，额定                       960 W

光源功率，电磁25°C，标称                       1000 W





环境特性



汞（Hg）含量                                    38 mg





照明灯技术特性



色标                                             220 [CCT of 2000K]

显色指数                                        25 Ra8

色温                                            2000 K

色温技术                                        2100 K

色度坐标X                                                     515 -

色度坐标Y                                                     420 -

平均亮度EM                                                   650 cd/cm2

照明效率,额定场致发光片25°C                          130 Lm/W

LLMF场致发光片,额定20000小时                 80 %

LLMF场致发光片,额定16000小时                 84 %

LLMF场致发光片,额定12000小时                 88 %

LLMF场致发光片,额定8000小时                   92 %

LLMF场致发光片,额定6000小时                  94 %

LLMF场致发光片,额定4000小时                  96 %

LLMF场致发光片,额定2000小时                  98 %

光通量，场致发光片25°C，额定                   130000 Lm

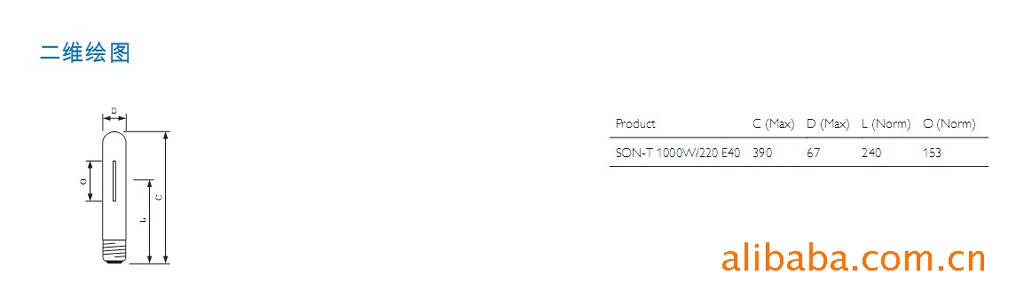

产品尺寸



总长C                                                          390 mm

直径D                                                          67 mm

光中心长度L                                                  240 mm

弧长O                                                         153 mm





灯具设计要求



灯头灯座温度                                    250 C

灯管温度                                        450 C
